Product Description

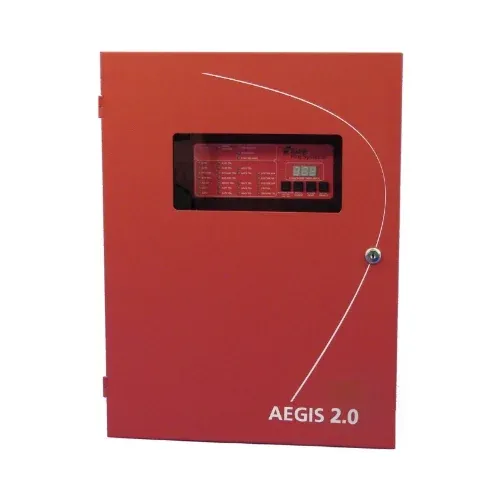

The Kidde AEGIS 2.0 Conventional Fire Extinguishing Control Panel is a compact, single-hazard agent releasing control unit designed to help protect people and valuable assets in commercial, high-tech, and industrial environments.

Built for flexible system configuration, the AEGIS 2.0 combines reliable fire suppression control with a space-saving design. The unit features a NEMA 1 enclosure and can be equipped with optional door-mounted Manual Release and Abort switches. This configuration eliminates the need to install these controls separately on a wall, helping simplify installation and reduce additional costs.

Features

• Purpose-built control unit for fire suppression and agent releasing applications.
• Triple-R redundancy helps provide enhanced protection against unintended agent discharge.
• FM Approved to ANSI 864, 9th Edition, NFPA 72 (2002), and ULC S527-99 requirements.
• UL Listed to ANSI 864, 9th Edition and ULC S527-99.
• Compatible with Kidde ECS HFC-227ea and FK-5-1-12 suppression systems.
• Supports Kidde ADS HFC-227ea and FK-5-1-12 systems.
• Compatible with Kidde HP CO₂, IG Argonite & Nitrogen, and FE-13 systems.
• Supports Fenwal Spheres and Fenwal BDC systems.
• Suitable for Kidde IND Dry Chemical and WHDR Wet Chemical systems.
• Supports sprinkler supervisory service applications.
• Designed for deluge, pre-action, foam, and foam-water suppression systems.
• Supports combined clean-agent and pre-action system configurations.
• Compact cabinet accommodates a large number of input and output circuits.
• Available with optional door-mounted Abort and Manual Release switches for convenient operation.
